Deep Mine Ventilation, Gas Monitoring & FLP Electrical Substations
MMPL provides ventilation, environmental monitoring and electrical infrastructure services for surface and underground mining operations.
Peak combined intake & exhaust atmospheric delivery over deep high-resistance drift networks.
Instantaneous microsecond cut-off threshold isolating section substations before gas explosive envelope.
Flameproof Ex-d skid-mounted underground dry-type power stations delivering continuous heavy face loads.
Subterranean heavy trunk conveyor routing engineered with auto-align, flame-retardant safety and zero-drift monitoring.
The 4 Pillars of Underground Survivability & Power
Continuous ventilation and certified flameproof power cannot exist in silos. MMPL delivers an unbreachable subterranean loop where air volume, gas presence, and electrical isolation operate as one synchronous safeguard.
Main Surface & Auxiliary Deep Fan Systems

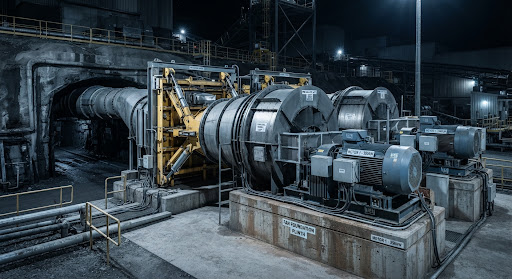

Engineered surface fan installations operating parallel or bifurcated configurations, handling high mine equivalent orifice constraints with variable frequency drives (VFD). Auxiliary booster fans push air down tight blind headings and blind shaft sinking bottoms.
Continuous Gas Monitoring & Rapid Power Interlocks

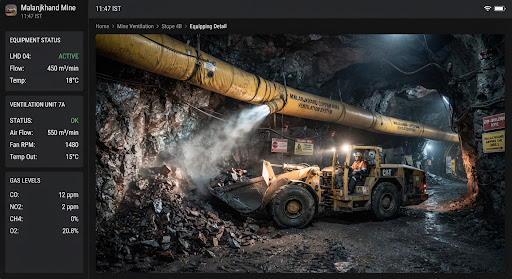

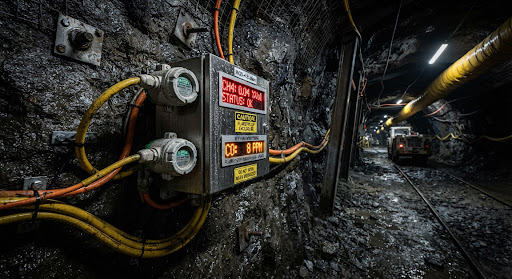

Environmental monitoring design considers CH₄, CO, CO₂, O₂ and H₂S, together with ventilation and electrical isolation requirements. Sensor selection, alarm thresholds and interlock arrangements are defined for each project.
Flameproof (FLP) & Intrinsically Safe Substations

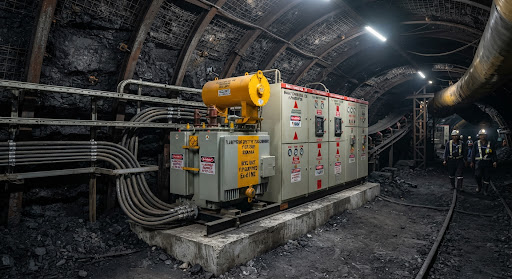

Central Mining Research Institute (CMRI) and DGMS approved skid-mounted Ex-d power centers. Delivering heavy transformation from surface 11 kV down to 3.3 kV longwall drives, continuous miners, and 550 V auxiliary sump dewatering arrays with microprocessor earth leakage guards.
Heavy Subterranean Belt Conveyor Networking

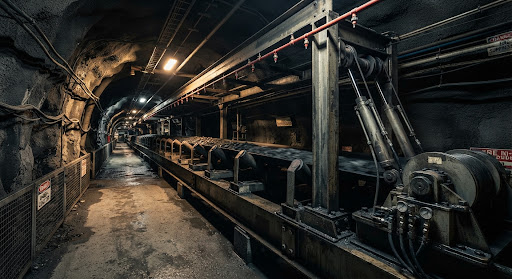

Engineered high-capacity continuous haulage networks connecting productive face drivages to the production hoist shaft bin. Incorporating flame-retardant anti-static (FRAS) multi-ply belting, automatic belt-rip detection, and integrated high-pressure dust suppression manifolds.
Ventilation & Gas Monitoring — Design Example
Illustrative engineering example. Values and diagrams explain system design; they are not site measurements or equipment status.
Direct physical relay logic bypasses software kernels. Any sensor recording CH₄ ≥ 0.75% for > 100ms commands unconditional shunt-trip across 11kV feeder switches.
Primary Intake Airway • Main Arterial Corridor
Engineering Specifications: Mechanical & Electrical Hardware
Full parametric breakdown across heavy exhaust fan installations, auxiliary heading ventilation, intrinsically safe atmospheric instrumentation, and underground flameproof transformation skid packages.
| EQUIPMENT CATEGORY | STANDARD RATING / CAPACITIES | PROTECTION CLASS / ATEX | STATUTORY REFERENCE | SYSTEM INTEGRATION |
|---|---|---|---|---|
| Main Shaft Surface Exhaust Fans Twin Axial / Centrifugal Modular Sets | Up to 450 m³/s @ 6.5 kPa static water gauge • Dual 400-800 kW VFD motors | IP55 / IP65 Surface Protected | CMR 2017 Reg 153 • MMR 1961 Reg 131 | Auto Reverse Drift Damper Interlock |
| Underground Auxiliary Booster Fans Single/Dual Stage Bifurcated Axial | 15 to 45 m³/s @ 2.2 kPa • 45 kW to 110 kW flameproof drive motors | Ex-d I (Group I Mines) • CMRI Certified | DGMS Tech Circular (Vent) No. 04 | Sensing vane relay to stop face loader |
| Continuous Multi-Gas Transducers Methane, Carbon Monoxide, Airflow, O₂ | CH₄: 0-5.00% • CO: 0-500 ppm • Air Velocity: 0.1-30.0 m/s ultrasonic | Ex-ia IIC T4 Intrinsically Safe | DGMS Approvals • IS/IEC 60079-11 | Surface SCADA + local 110dB sirens |
| Skid-Mounted Mobile FLP Substations Flameproof Dry-Type Mining Transformers | 500 kVA to 2,000 kVA • Primary 11 kV/6.6 kV → Sec 3.3 kV / 1.1 kV / 550 V | Ex-d I Mb • Heavy Bolted Flanges | Central Electricity Authority (Mines) 2010 | Restricted neutral earth fault (<750mA) |
| Heavy Trunk Belting & Drives Underground Armored Conveyor Infrastructure | 1,000 to 1,600mm belt width • Up to 2,400 t/h • Dual 250 kW FLP drive heads | FRAS Belt Spec • Fire Retardant IS 4776 | CMR 2017 Reg 92 • DGMS Conveyor Code | Zero-speed slip & chute choke sensors |
Subterranean Execution Case Studies
Main Upcast Shaft Ventilation & Degasification Array

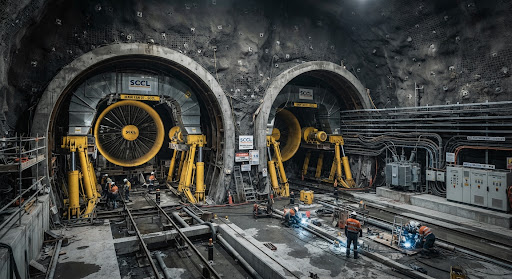

Turnkey design and installation of 2x350 kW bifurcated main exhaust axial fans on a 6.0m diameter upcast shaft bottom. Integrated automated methane drainage monitoring and reverse air flow gates fulfilling DGMS Degree-III compliance.
Degree-III Deep Seam FLP Electrical Modernization
Replaced legacy oil-filled apparatus with 6 modular skid-mounted 1,000 kVA dry flameproof mobile substations and 14 km of flame-retardant armored cross-linked polyethylene (XLPE) cables with 50ms CH₄ automated power trip loops.
Auxiliary Cooling & Dust Extraction for Heavy LHD Fleet
Engineered auxiliary chilling and high-static pressure multi-stope booster networks across 12 active sublevels, maintaining ambient face temperatures <29°C wet bulb while rapidly scrubbing diesel particulate matter (DPM).
Schedule Mine Ventilation Audit or FLP Commissioning
Directly connect your Directorate of Mines Safety (DGMS) desk, Chief Mechanical Engineer, or General Manager (Ventilation) with MMPL’s subterranean life-support task force. We conduct comprehensive pressure-quantity surveys, network 3D Ventsim simulations, and turnkey FLP electrical engineering.
All shaft dimensions, fan curves, seam gas content measurements, and schematic uploads remain strictly privileged under mutual non-disclosure agreements compliant with institutional procurement guidelines.
